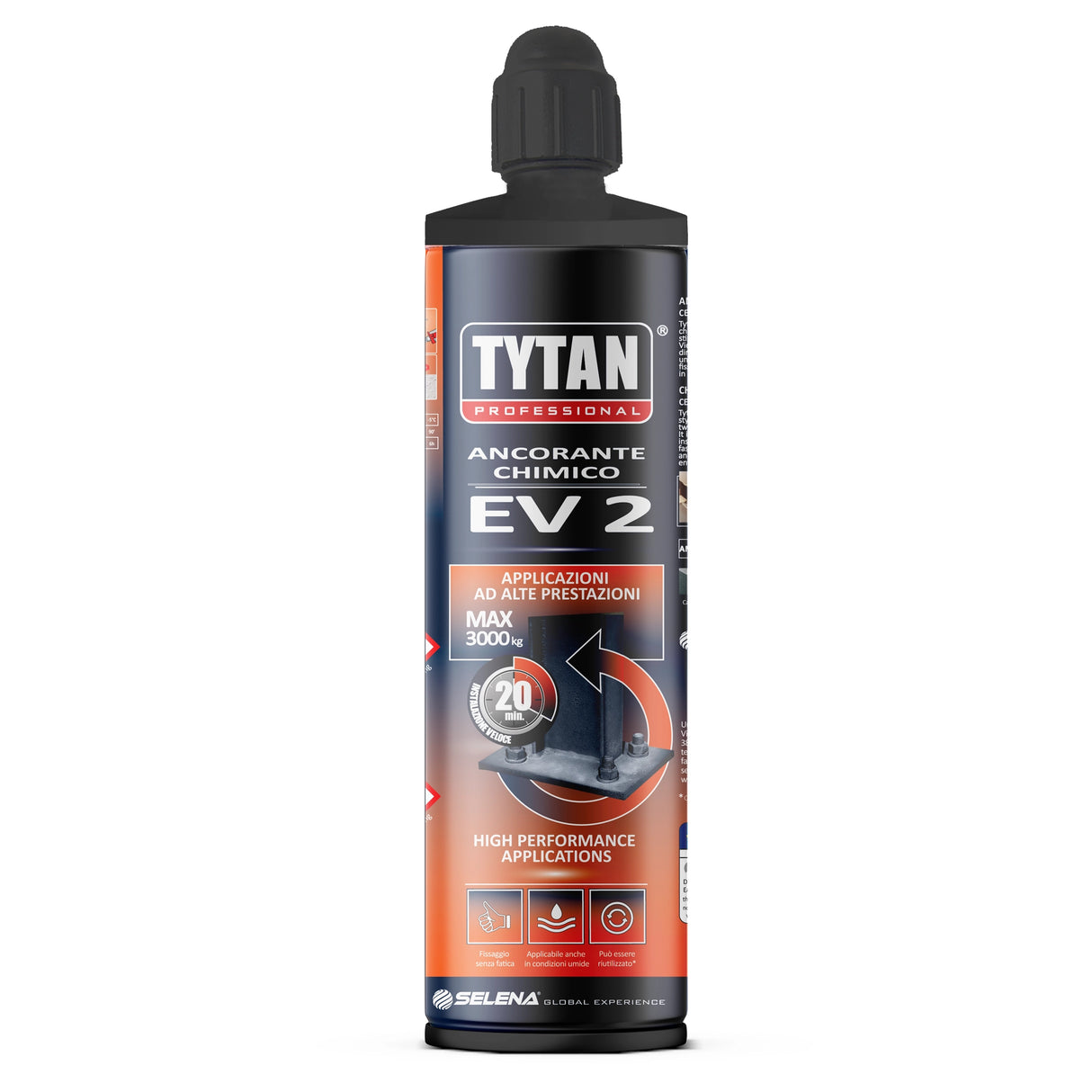

Chemical anchoring Tytan EV 2 300 ml is a high -performance chemical anchoring system, epiposiacrilaro without worthy, rapid hardening, two -component. It is applied, through the appropriate mixers, directly inside the fixing holes. EV 2 is a chemical anchoring, tenacious, for high loads and critical fixings, in particular for corrosive environments and in the presence of humidity.
ADVANTAGES
-
Readying cartridges to use without bags to be cut
- Without worthy
- It can be used in dry and wet conditions
-
The low retreat allows a large diameter installation
-
Quick hardening
-
Good mechanical and chemical resistance
-
For internal and external use
Applications
-
Suitable for walls and cracking concrete and not crapped
-
Suitable for critical applications
-
Suitable for fixing lanterns, heavy poles, wardrobes and wall units
-
Suitable for medium and heavy load applications
-
Suitable for applications of external lights (for terraces and balconies)
-
Also suitable on wood
Technical specifications
- Compression resistance: 41 MPA
Flexion Resistance: 15.4 MPa
Traction resistance: 9.4 MPa
EC second ETAG 001:
-Ead 330499-00-0601 M8-M24 threaded bar and Ø8-Ø25mm
- rails from shooting on non -cracking concrete
- Post-installed + Fire Test improved
-Ead 330076-00-0804 M6-M12 threaded bar on masonry "
Wras approval for continuous use in contact with water
drinking no. 1501531
Leed Tested 2009 EQ C4.1 SCAQMD RULE 1168 (2005)
- Click here for the technical data sheet
