Hammer drill Milwaukee M18 BLH-502X 18V 5Ah
Returns within 15 days of delivery
Available payment methods
• **PayPal**: fast and secure, without sharing your card details.
• **Bank transfer**: ideal for businesses and professionals, with advance payment.
• **Pay in 4 with ScalaPay**: split the amount into 4 interest-free instalments.
• **Flexible payment with Klarna**: split the amount into 3 interest-free instalments.
• **Pay in 4 with PayPal**: split the amount into 4 interest-free instalments.
Official warranty
All our products are covered directly by the manufacturer's warranty.
To get the most out of it, we recommend registering your product on the manufacturer's website: in many cases you can extend the warranty to 2 or 3 years.
Description

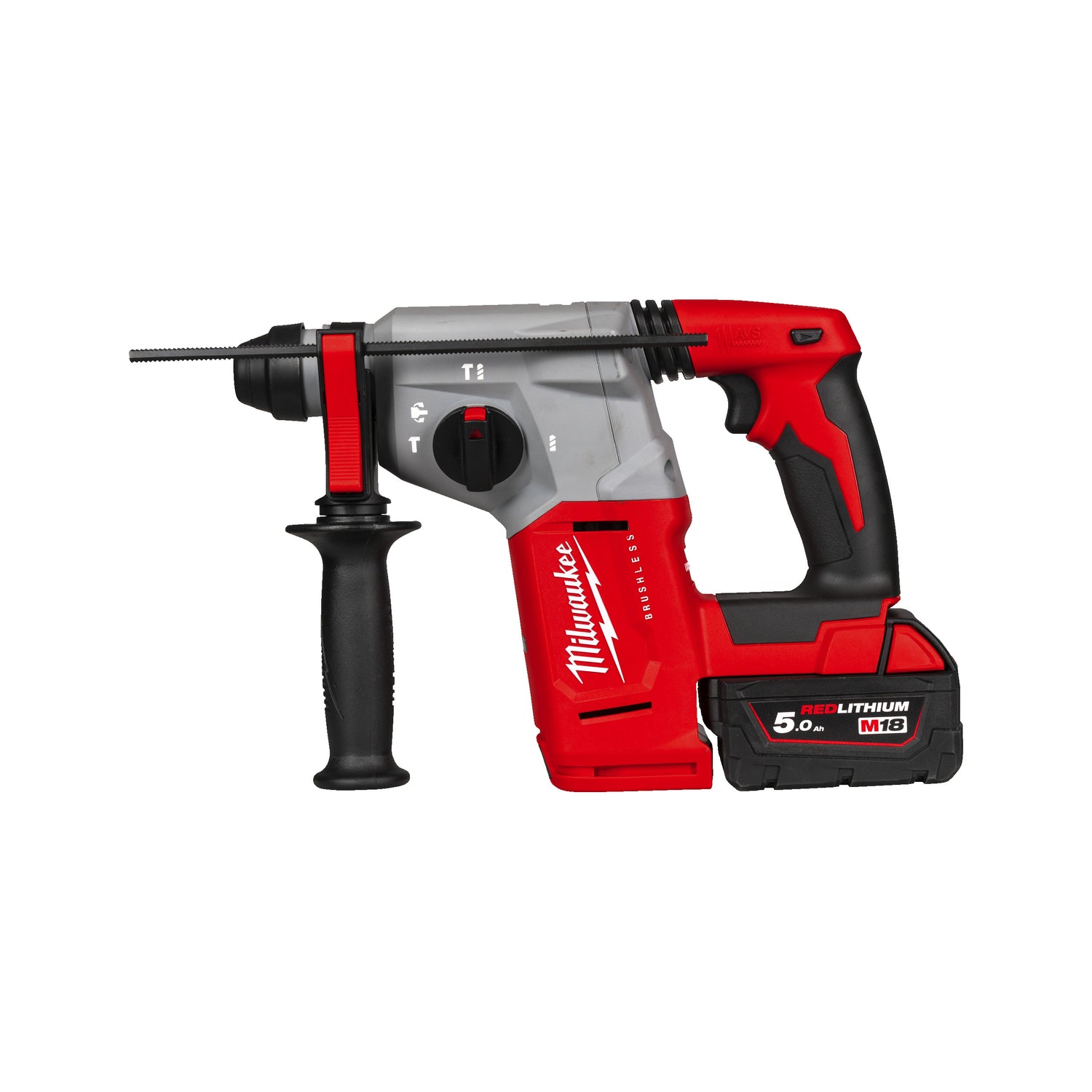

Milwaukee M18 BLH-502X rotary hammer 18V 5Ah with brushless motor, 2.3 J impact energy and 4 operating modes.
Milwaukee M18 BLH-502X rotary hammer with brushless motor and 4 modes on EmmetiStore
On EmmetiStore you will find professional and reliable solutions. The Milwaukee M18 BLH-502X is a cordless rotary hammer designed for drilling and chiselling with an SDS-Plus chuck, ideal for work on concrete, wood and metal.
What the Milwaukee M18 BLH-502X is for
The Milwaukee M18 BLH-502X cordless rotary hammer is used for drilling in concrete up to 26 mm, with performance optimised for holes from 6 to 18 mm, for example for fixing anchors. It drills wood up to 26 mm and metal up to 13 mm. In chiselling mode it allows light demolition work, with a neutral position for orienting the chisel. Connected to the M18 CDEX dust extraction unit, it enables cleaner drilling with dust extraction.
Main advantages
- Brushless motor and REDLINK PLUS™ electronics with 2.3 J impact mechanism for greater efficiency.
- 4 operating modes: hammer drilling, chiselling, rotation and neutral position for chisel orientation to reduce time and effort.
- Metal gearbox and REDLITHIUM™ battery pack for consistent reliability.
- Anti-vibration side handle and compact, ergonomic design for safety and control.
Technical specifications
- Battery capacity (Ah): 5.0.
- Charger included: M12-18 FC.
- No. of batteries supplied: 2.
- Battery charging time: 59 min.
- Battery type: Li-Ion.
- Voltage (V): 18.
- Chuck: SDS-Plus.
- Max drilling capacity in wood (mm): 26.
- Max drilling capacity in metal (mm): 13.
- Compatible with dust extraction system: Milwaukee M18 CDEX.
- Impact energy (EPTA) (J): 2.3.
- Impact energy (J): 2.3.
- Max concrete hole (mm): 26.
- Impact rate (blows/min): 0 - 5100.
- Optimised for drilling in concrete (mm): 6 - 18.
- No-load speed (rpm): 0 - 1400.
- Weight (kg): 2.6.
- Weight with battery pack (EPTA) (kg): 3.3 (M18 B5).
- Sound power level uncertainty (dB(A)): 3.
- Sound pressure level uncertainty (dB(A)): 3.
- Sound power level (LwA) (dB(A)): 101.7.
- Sound pressure level (LpA) (dB(A)): 90.7.
- Drilling vibration uncertainty (m/s²): 1.5.
- Chiselling vibration uncertainty (m/s²): 1.5.
- Drilling vibration (m/s²): 8.9.
- Chiselling vibration (m/s²): 9.5.
- Motor: brushless.
- Electronics: REDLINK PLUS™.
- Gearbox: metal.
- Operating modes: hammer drilling, chiselling, rotation and neutral position for chisel orientation.
- Compatible batteries: all Milwaukee M18™ batteries.
Ideal for
- Drilling in concrete, wood and metal on dedicated materials.
- Anchor fixings and chiselling for installation and maintenance.
- Drilling with dust extraction via M18 CDEX in professional settings.
- Cordless work with 2 M18 B5 packs for continuous use.
Supplied accessories
- 2 Milwaukee M18 B5: battery pack.
- 1 Milwaukee M12-18 FC: charger.
- 1 Side handle.
- 1 Depth rod.
- 1 Grease.
- 1 Heavy-duty case: for demanding use.
Why choose this product
The Milwaukee M18 BLH-502X combines a brushless motor, REDLINK PLUS™ electronics and REDLITHIUM™ batteries in a compact and ergonomic cordless SDS-Plus rotary hammer. With 4 operating modes, a metal gearbox and an anti-vibration side handle, it is a complete solution for anyone looking for a rotary hammer to drill concrete and chisel, ready to use thanks to the kit with two batteries, charger and case.
Why buy on EmmetiStore
- Best price, always competitive.
- Official manufacturer's warranty.
- Fast and secure shipping.
- Specialised technical support.
- Invoicing available for companies, technicians and professionals.
Where to Buy It
The Milwaukee M18 BLH-502X is available from specialised retailers. On EmmetiStore you can buy it with professional support.
